PPH winding chemical storage tank machine production line

Place of Origin Shandong, China

Warranty    1 Year

Weight (KG)    2000

Video outgoing-inspection Provided

Machinery Test Report Provided

Warranty of core components    1 Year

Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Key Selling Points  Easy to Operate

Applicable Industries  Manufacturing Plant, store, Lithium battery, Chemistry, Hazardous waste, Landfill leachate, Agitator tank, Reaction still

Showroom Location None

Condition    New

Brand Name J-JD-03

Name Spiral wound storage tank production line

Production efficiency High

security High

Heating method Electric heating

Equipment investment Low

Mode of production    Continuous spiral winding

Equipment type custom

Final product PPH

Equipment power 160kw

Vehicle requirement More than 5 tons

Packaging and delivery

Plastic Wrap + Pallet + Container

Port    Qingdao

Supply Ability

Supply Ability    120 Set/Sets per Year

Show less

Lead time

Customization

Introduction of PPH winding storage tank equipment

Continuous winding tank equipment is a kind of energy-saving and environmentally friendly process that can be continuously wound and molded, the winding length of the tank can be adjusted at will, and there is no need to repeatedly bake the molds with gas and cool the molds, which is energy-saving and environmentally friendly, highly efficient, easy to operate, and uses less labor.

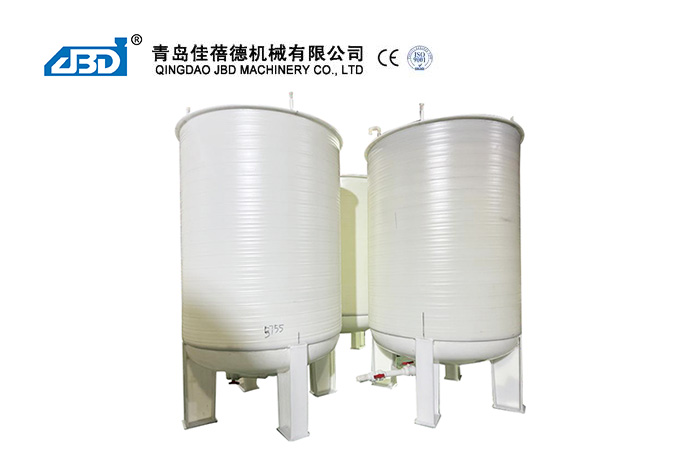

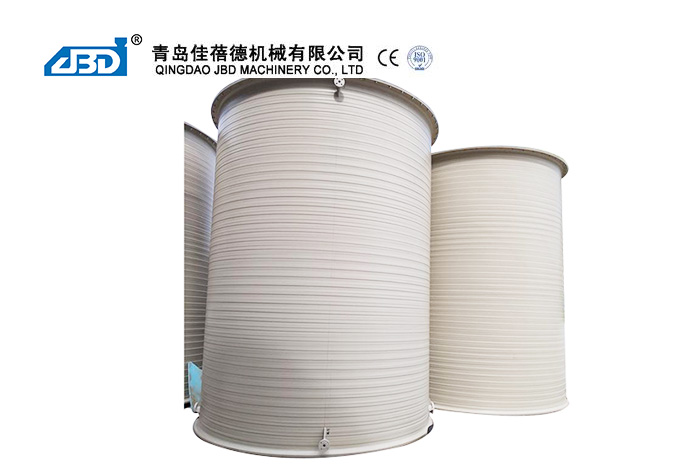

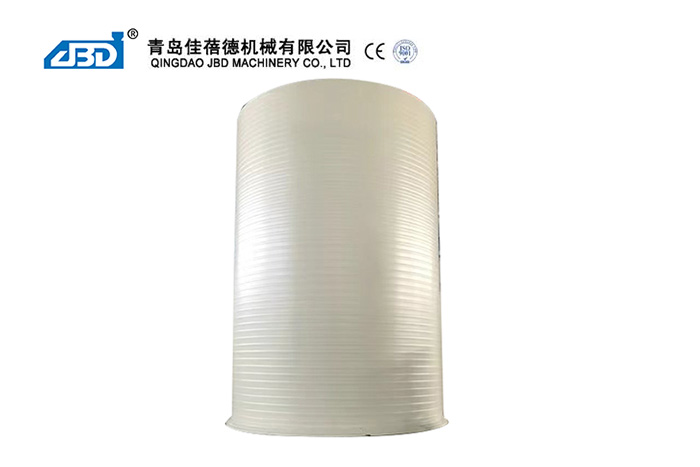

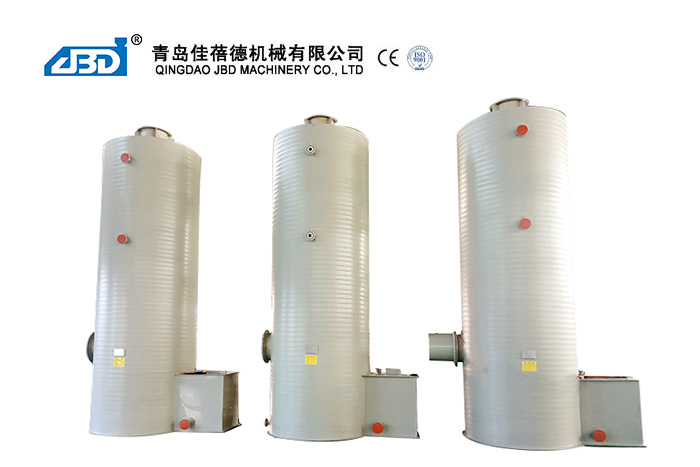

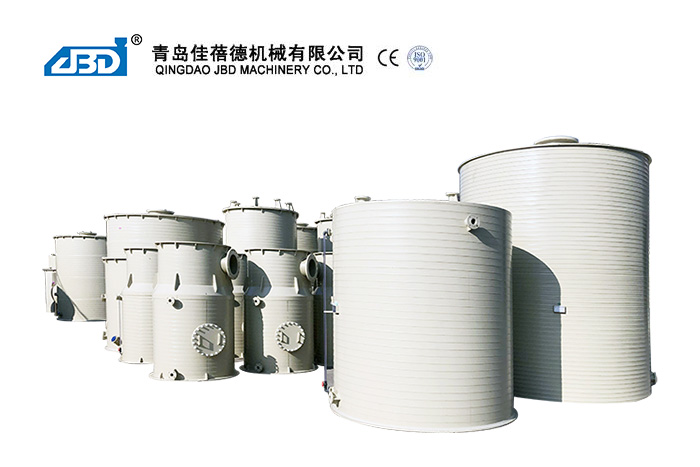

We can produce tanks, reactors, spray towers and pipes of various specifications.

Product process introduction:

Our company developed and produced the new pH winding tank equipment, different from the traditional tank winding equipment, no need to use drum mold production, directly winding molding;

It can achieve the diameter specification from 1000mm-5000mm between the large span production, can also be customized according to the requirements, different diameter of the tank can also achieve the continuous winding of any length;

The produced tank is a molding, no welding seam, internal and external wall flat, more safe and durable;

Production without fire baking, energy saving and environmental protection;

The winding forming module is light in weight, easy installation and high safety factor.

Scope of production

The whole tank production line can produce pipe diameter: 1000mm, 2000mm, 2200mm, 2500mm, 2800mm, 3000mm, 3200mm, 3500mm, 4000mm, 4500mm, 500 mm, 5000m, and can also be customized for specific sizes.

Bottom inside welding process

Reservoir production line configuration advanced automatic horizontal long arm extrusion rotary welding unit, once complete important tank bottom internal welding work, increase the tank bottom pressure capacity, prevent the emergence of leakage phenomenon, can effectively extend the service life of the whole product for up to 10 years, stationary state even can even reach the service life of 15 years.

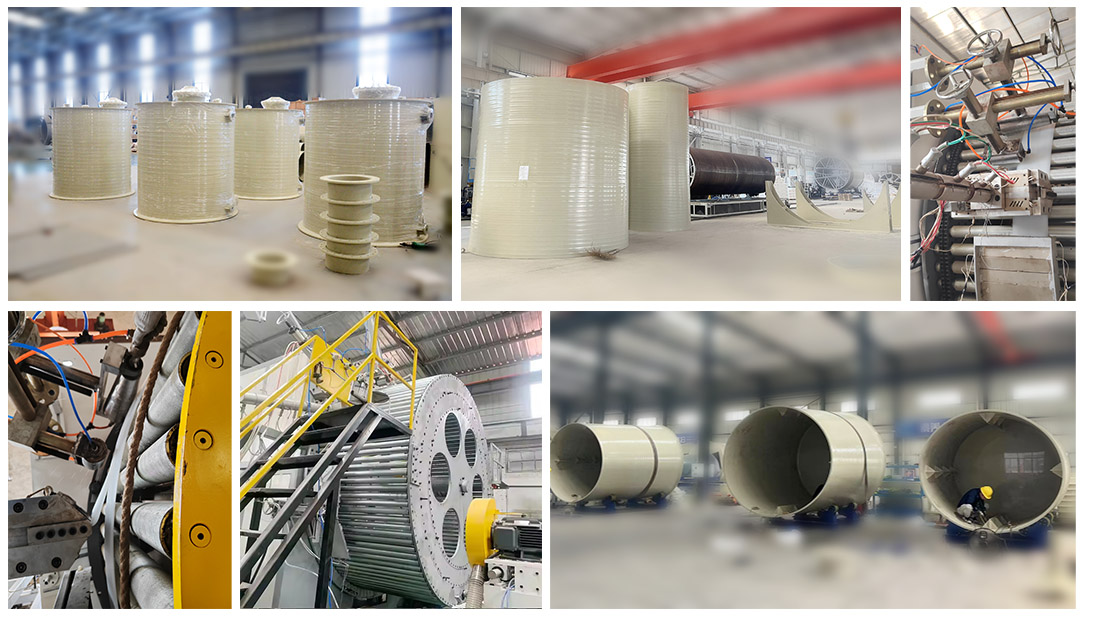

Production principle of pph winding storage tank equipment

●The modified PPH particles are fused through the high efficiency single screw extruder and squeezed with a certain width and thickness through the sheet mold for high temperature melt PPH sheet. On the PPH tank winding machine, winding set bone rods are mounted through specific specification positioning discs and positioning holes to form a circular winding cage.

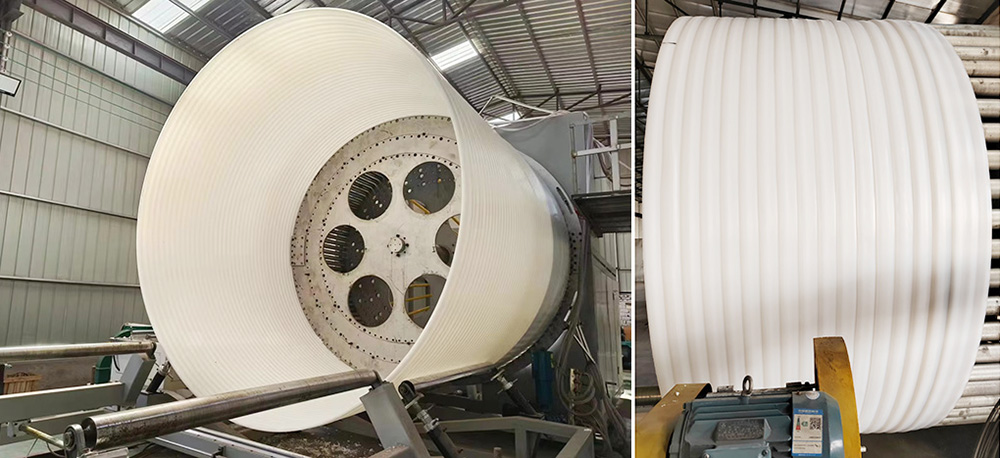

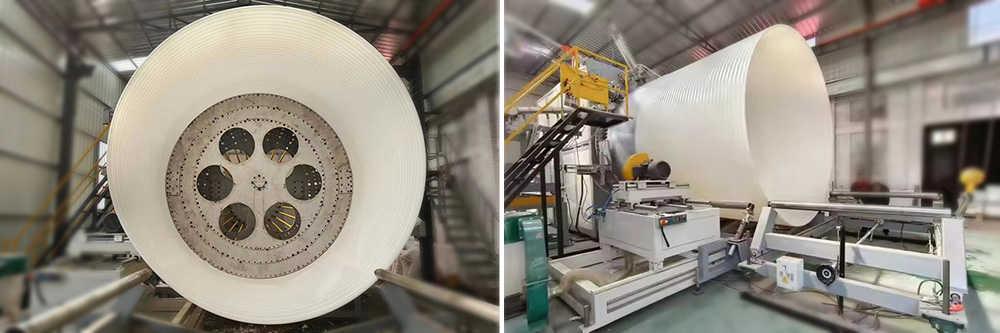

●The high temperature molten PPH sheet is wound on the circular winding cage and wound continuously with the rotation of the bone rod. There is a certain spiral Angle on the axis of the winding cage, so that the winding forming tank can be moved forward, and the continuous winding PPH sheet is wound into a continuous forward tank for continuous production.

●The cutter can cut and wrap the tank at any set length. The cut wound tank is welded by the internal and outer tank and the tank opening to produce a complete PPH winding tank.

Advantages of equipment

● The length of the wrapped tank can be adjusted at will and cut off as required. Not subject to the die length limit.

● The winding mold is not heated by repeated open fire, and then cooled repeatedly. Solve the resulting energy consumption, open fire combustion brought by environmental protection, safety risks (do not need fire approval). Reduce the number of personnel, improve the production efficiency.

● The equipment adopts split body and combination mode to facilitate the production at the construction site. Solve the problem that the super-large tank body cannot be transported. Reduce transportation costs, thus increase product competitiveness

● The continuous winding process can also save the investment of lifting and driving. Only need to install a small tonnage lifting car to meet the weight of the tank (10 tons of driving can be enough)

● There is no need to invest in multiple winding molds, and the equipment investment is lower than the traditional one.
