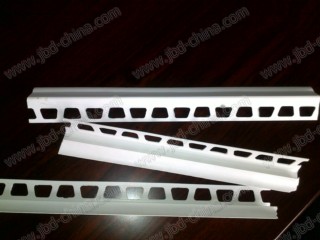

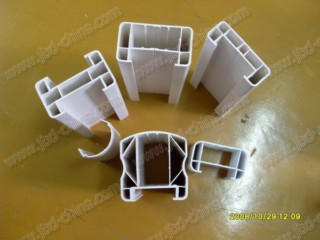

PVC profiles are mainly used in PVC window, wall panel and small profiles for decoration. And this extrusion line is the best choice to produce those profiles.
This line is made up of conical twin screw extruder, mould, calibration table, hauler, cuter, stacker.
Additionally, for PVC window profile, equipped with correspondent co-extruder, the rubber seal or the surface color can be co-extruded on line. From the material feeding until the stacking, it is fully automatic, which also pursues the characteristics of good plasticization, low power consumption and cost effective.
Introduction
PVC profiles are mainly used in PVC window, wall panel and small profiles for decoration. And this extrusion line is the best choice to produce those profiles.

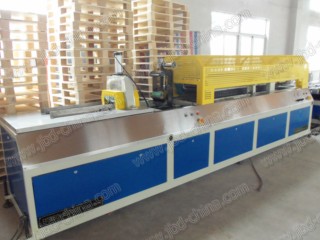

This line is made up of conical twin screw extruder, mould, calibration table, hauler, cuter, stacker.
Additionally, for PVC window profile, equipped with correspondent co-extruder, the rubber seal or the surface color can be co-extruded on line. From the material feeding until the stacking, it is fully automatic, which also pursues the characteristics of good plasticization, low power consumption and cost effective.
Features
Specification
|
Down stream model |
Max. product length |

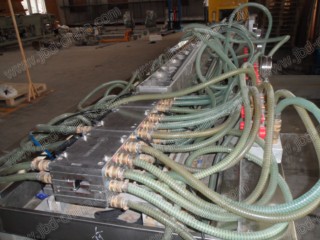

Vacuum calibration table |
Hauler |
Cutter |
|||
|
Vacuum pump |
Water pump |
Length |
Motor |
Motor |
Cutting type |
||
|
YF-240S |
240mm |
5.5kw×2 |
4.0kw×1 1.5kw×1 |
4000mm |
1.1kw×2 |
2.2kw×1 |
Guillotine cutting |
|
YF-240 |
240mm |
5.5kw×4 |
4.0kw×1 2.2kw×1 |
6000mm |
1.5kw×2 |
2.2kw×1 |
Guillotine cutting |
|
YF-300 |
300mm |
5.5kw×4 |
4.0kw×1 2.2kw×1 |
6000mm |
1.5kw×2 |
2.2kw×1 |
Guillotine cutting |
