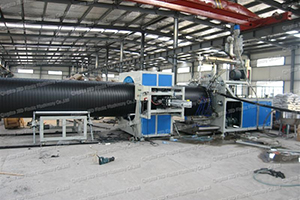

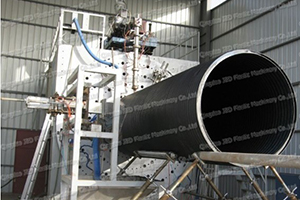

HDPE Large-Diameter Hollowness Wall Winding Pipe Production Line

Introduction

Our company absorbs latest technologies from both home and aboard for large diameter HDPE pipe production line and FR-PP pipe production line.It can produce large diameter 200-3200mm drainage pipe.The pipe is increasingly becoming a mainstream product for urban drainage system.It will gradually replace the steel pipes and cement pipes.
This HDPE Large-Diameter Hollowness Wall Winding Pipe Production Line adopts advanced PLC computer control,high efficiency screw and composite die whichincludes pipe extruder,co-extruder,winding forming machine,cutting machine and relevant auxiliaries.This production line features high capacity,high efficiency and stable running.The finished pipe features high rigidity,high creep-resistance,convenient connection and economic use.

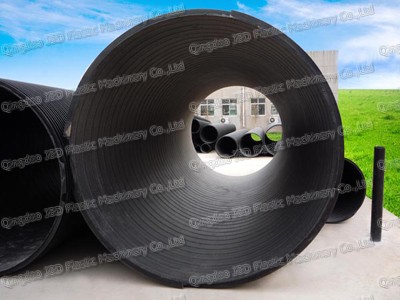

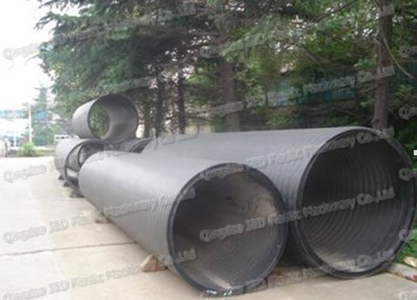

This production line can make the following pipes:double wall corrugated winding pipe,double wall winding pipe and triple winding pipe

Features

●Top quality by advanced technology
●High speed and excellent extrusion quality by adopting two sets of single screw extruders with high efficiency performance
●Unique design of composite die-head for large diameter winding pipe processing with production efficiency
●High quality of winding pipe produced by adopting the unique winding process for pipe forming
●Easy operation and high performance by adopting an advanced PLC control system
