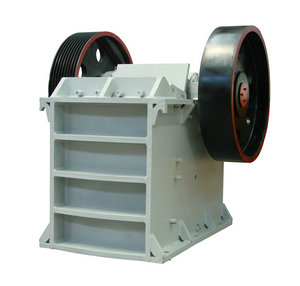

Crusher is ideally suitable for primary and secondary crushing. The largest compression resistance of the material to be crushed is 320MPa. The crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.
Introduction
Crusheris ideally suitable for primary and secondary crushing. The largest compression resistance of the material to be crushed is 320MPa. The crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.
Application
Features
1. World-level manufacturing technology is adopted, and highest-level raw material is used.
2. More advanced movable jaw assembly lengthens life of crusher.
Movable jaw assembly is made from cast piece with high-quality, is
driven by two large flying wheels which are made from cast steel.
Moreover, heavy eccentric shaft is processed by forged mold. All of
these make the JCE series jaw crusher extremely reliable.
3.Integral cast steel structure is adopted for bearing seat. Integral
cast steel bearing matches well with the crusher frame, at the same
time, radial strength of the bearing seat is highly strengthened.
However, the separate bearing seat does not have this advantage.
4.Finite element analysis technology is adopted to make the crusher much stronger.
5.Crusher chamber adopts "V" structure which could make actual feed width comply with the nominal one.
6.Easy to adjust discharge opening .
JCE European jaw crusher has a adjustment device of discharge opening, which is simpler, safer and faster than old one..
7.Bearing with larger model and higher load are used.
All JC jaw crusher is equipped with larger bearing compared with same
model of normal jaw crusher. Its higher load capacity and effective oil
seal will lengthen the life of bearing.
8.A newly designed tooth-shape side plate, makes the available area of jaw plate longer, and enhances the capacity.
Specification
|
Model |
diameter rotary knife rotary |
rotating blade (the) |
fixed blade (the) |
aperture plate |
feed aperture |
broken particle size |
broken rate |
power matching |
Dimensions |
quality machine |
|
SWP100 |
100 |
2 |
2 |
6 |
160 * 100 |
3-5 |
40 |
2.2 |
560 * 370 * 925 |
120 |
|
SWP160A |
160 |
3 |
2 |
8 |
254 * 200 |
3-6 |
100 |
37 |
90 * 490 * 1300 |
305 |
|
SWP250 |
250 |
6 |
2 |
10 |
300 * 250 |
3-10 |
250 |
5.5 |
1170 * 800 * 1570 |
410 |
|
SWP260 |
260 |
3 |
2 |
12 |
370 * 150 |
3-12 |
300 |
5.5 |
900 * 730 * 925 |
180 |
|
SWP320 |
320 |
6 |
2 |
10 |
510 * 370 |
3-10 |
300 |
11 |
1175 * 850 * 1632 |
1063 |
|
SWP340 |
340 |
3 |
2 |
10 |
520 * 340 |
3-10 |
300 |
11 |
1400 * 1032 * 2540 |
1450 |
|
SWP360A |
360 |
3 |
2 |
12 |
520 * 250 |
3-12 |
400 |
11 |
1350 * 1040 * 1600 |
750 |
|
SWP360B |
360 |
3 |
2 |
12 |
520 * 250 |
3-12 |
400 |
11 |
1020 * 1070 * 1438 |
760 |
|
SWP400A |
400 |
5 |
2 |
10 |
375 * 320 |
3-10 |
450 |
11 |
2200 * 910 * 1860 |
1450 |
|
SWP500Z |
500 |
3 |
2 |
10 |
720 * 650 |
3-10 |
500 |
37 |
1900 * 1550 * 2800 |
4200 |
|
SWP500Q |
500 |
3 |
2 |
10 |
630 * 500 |
3-10 |
500 |
18.5 |
1600 * 1400 * 2600 |
2500 |
|
SWP630 |
630 |
3 |
2 |
10 |
500 * 420 |
3-10 |
800 |
30 |
2710 * 1300 * 2840 |
3500 |
|
SWP800 |
800 |
10 |
4 |
10 |
1000 * 776 |
3-10 |
1000 |
55 |
1900 * 1500 * 3500 |
5500 |
|
SWP400G |
400 |
6 |
4 |
10 |
500 * 400 |
3-10 |
550 |
15 |
3700 * 1950 * 2400 |
4115 |
|
SWP2000G |
2000 |
1 |
2 |
3 |
800 * 800 |
|
2500 |
55 |
4220 * 2700 * 5500 |
7350 |
Process
